Them little knobs

Discussion in 'Reloading' started by themighty9mm, Oct 10, 2011.

  1. themighty9mm

    themighty9mm

    Joined:
    Sep 19, 2008
    Messages:
    3,096
    Likes Received:
    5
    Location:
    MO
    I have seen is pics in the past where members had a knob on their powder drop for dillons. It either replaced or slide over the nut for the measurement adjustment. What are they called and whered yall get em?


  2. themighty9mm

    themighty9mm

    Joined:
    Sep 19, 2008
    Messages:
    3,096
    Likes Received:
    5
    Location:
    MO
    similar. Only the ones I'm looking for are more flat and round. They are also serrated on the edge. Much like a quarter.

  3. StaTiK

    StaTiK Get Some

    Joined:
    Jan 22, 2002
    Messages:
    232
    Likes Received:
    0
    Location:
    SE Michigan
    There's this:

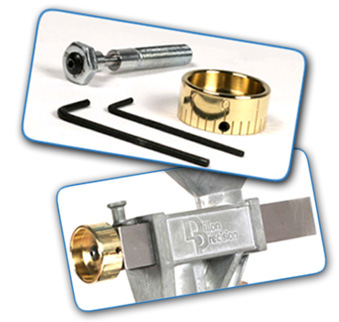

    [​IMG]
    It's called "Mr Dial" and can be found at http://www.mrdial.com. I have no experience with this product and neither endorse nor recommend against its use.

    -StaTiK-

  4. beancounter81

    beancounter81

    Joined:
    Oct 10, 2009
    Messages:
    307
    Likes Received:
    0
    Location:
    NC
    I'll probably be called bad names for admitting I use one of these, but I do. There, I said it. I use a single powder measure across multiple calibers and the Mr Dial enables me to immediately dial back into the correct setting for a caliber. Of course I weigh the throw to make sure but this little gadget sure makes it easy! I was not having similar success using the plastic knobs.

  5. Colorado4Wheel

    Colorado4Wheel

    Joined:
    Nov 2, 2006
    Messages:
    14,993
    Likes Received:
    217
    Location:
    CO
    How do you know how many turns in or out you need?

  6. unclebob

    unclebob DFC, MSM, 13 Air Medals.

    Joined:
    Oct 14, 2000
    Messages:
    7,842
    Likes Received:
    717
    Location:
    Mary Esther FL
    Just my personal option. But if you look at the design of the Dillon powder bars, it is in my option not really designed for multiple changing of the settings. At some point screwing it in and out is going to loosen up and start getting erroneous powder throws. I would rather get more powder measures and leave them set for what I’m loading or get more powder bars and change those out. They are easily removed and the bar is already set for what I want powder throw I want.
    I forget who posted on here that they had a measure bar wear out by doing just that.
    Also Home Depot depending on the store carries the round ones. My Home Depot at onetime carried them but no longer. If you can find a picture of the one you want. Take it to Ace Hardware and see if they carry them or if they well order one for you.

  7. beancounter81

    beancounter81

    Joined:
    Oct 10, 2009
    Messages:
    307
    Likes Received:
    0
    Location:
    NC
    It's trial & error the first time you use a particular powder. I start with the powder bar completely closed, then count the number of complete turns plus the partial turn based on the graduations on the knob. After I get a couple of readings for different amounts of a particular powder, it's pretty easy to build a table for future reference. For instance, 5.1 gr of WSF (my 9 MM load with 124 gr FMJ) is two complete turns + a partial turn to the second hash mark past 7 - I abbreviate as 2.7 2/3. My .40 S&W load with 180 gr FMJ of 6.5 gr True Blue is 2.5 1/3. Bunny fart load for .38 Special of 4.0 gr W231 under 125 gr JHP is 1.9 2/3. I weigh a sample of 10 charges after resetting but it is usually dead on.

    The knob is graduated 0-9 (major graduations) with two minor graduations in between. Each major graduation is roughly 0.1 gr although it varies a bit between powders. WSF & True Blue are pretty much dead-on 0.1 gr per major graduation. W-231 is close, but not exact.

  8. Colorado4Wheel

    Colorado4Wheel

    Joined:
    Nov 2, 2006
    Messages:
    14,993
    Likes Received:
    217
    Location:
    CO
    So can you tell how many "turns out" you are? Or do you just need to count?

  9. beancounter81

    beancounter81

    Joined:
    Oct 10, 2009
    Messages:
    307
    Likes Received:
    0
    Location:
    NC
    You need to count.

  10. njl

    njl

    Joined:
    Sep 28, 2000
    Messages:
    8,603
    Likes Received:
    1,241
    Location:
    :noitacoL
    The little plastic ones slip onto the existing nut on the powder bar. Home Depot carries them in both wingnut and round dial style...but not all Home Depot's stock them. Look around the specialty fasteners area in the store.

  11. rball

    rball

    Joined:
    Jun 20, 2008
    Messages:
    174
    Likes Received:
    3
    Location:
    Southern Wisconsin
    I too use one powder dispenser across multiple calibers. Initially, I purchased a plastic knob from Home Depot, I think it was a dollar and some change. After a few changeovers and realizing that I still need to futz with the dial to get the right charge, I found the micrometer head from UniqueTek. I bought it, and haven't looked back since. The Mr. Dial looks interesting, but I have never used one.

  12. beancounter81

    beancounter81

    Joined:
    Oct 10, 2009
    Messages:
    307
    Likes Received:
    0
    Location:
    NC
    I have no doubt that the UniqueTek micrometer is superior - think of the Mr Dial as the poor man's pseudo-micrometer.

  13. jfrey

    jfrey

    Joined:
    Apr 9, 2011
    Messages:
    179
    Likes Received:
    0
    I have a Mr.Dial on my 9mm SDB press and it works fairly well. I normally set it and leave it but I do occassionally change the charge and I just notice where it is positioned first and count the turns until I get the metering I want. When I go back I just count backwards from there to the original setting and weigh the charges again just to be sure. It makes the adjustment look really scientific to those who don't know. I have the Home Depot knob on my .45 SDB.

  14. WiskyT

    WiskyT Malcontent

    Joined:
    Jun 12, 2002
    Messages:
    11,682
    Likes Received:
    3
    Location:
    North Carolina
    You're a smelly festering boil for not having sperate measures not only for each caliber, but for each powder used in each caliber.

    Actually, one of the niceties of the Autodisc is that you can pop in a cavity and be right where you want based on your notes. For something like 3.5 Bullseye, the 0.37cc cavity is spot on every time for the last 25 years for me. I don't even weigh any to verify things. I DO DOUBLE and TRIPPLE check that I have the correct cavity in.

  15. beancounter81

    beancounter81

    Joined:
    Oct 10, 2009
    Messages:
    307
    Likes Received:
    0
    Location:
    NC
    I've been called a lot worse than that! :tongueout:

  16. themighty9mm

    themighty9mm

    Joined:
    Sep 19, 2008
    Messages:
    3,096
    Likes Received:
    5
    Location:
    MO
    That mr dial might be a option. 25 bucks though? For what it is, gawd.If I get that little bugger it better be worth it.

  17. Colorado4Wheel

    Colorado4Wheel

    Joined:
    Nov 2, 2006
    Messages:
    14,993
    Likes Received:
    217
    Location:
    CO
    A simple wing style nut from Lowes cost under $2. Paint one end so you have a pointer. Nearly the same function. I just wrote down "11:30=3.2 gr of Solo 1000".

  18. WiskyT

    WiskyT Malcontent

    Joined:
    Jun 12, 2002
    Messages:
    11,682
    Likes Received:
    3
    Location:
    North Carolina
    I'll have to try harder:wavey:
